Nx34 Series Three-Phase

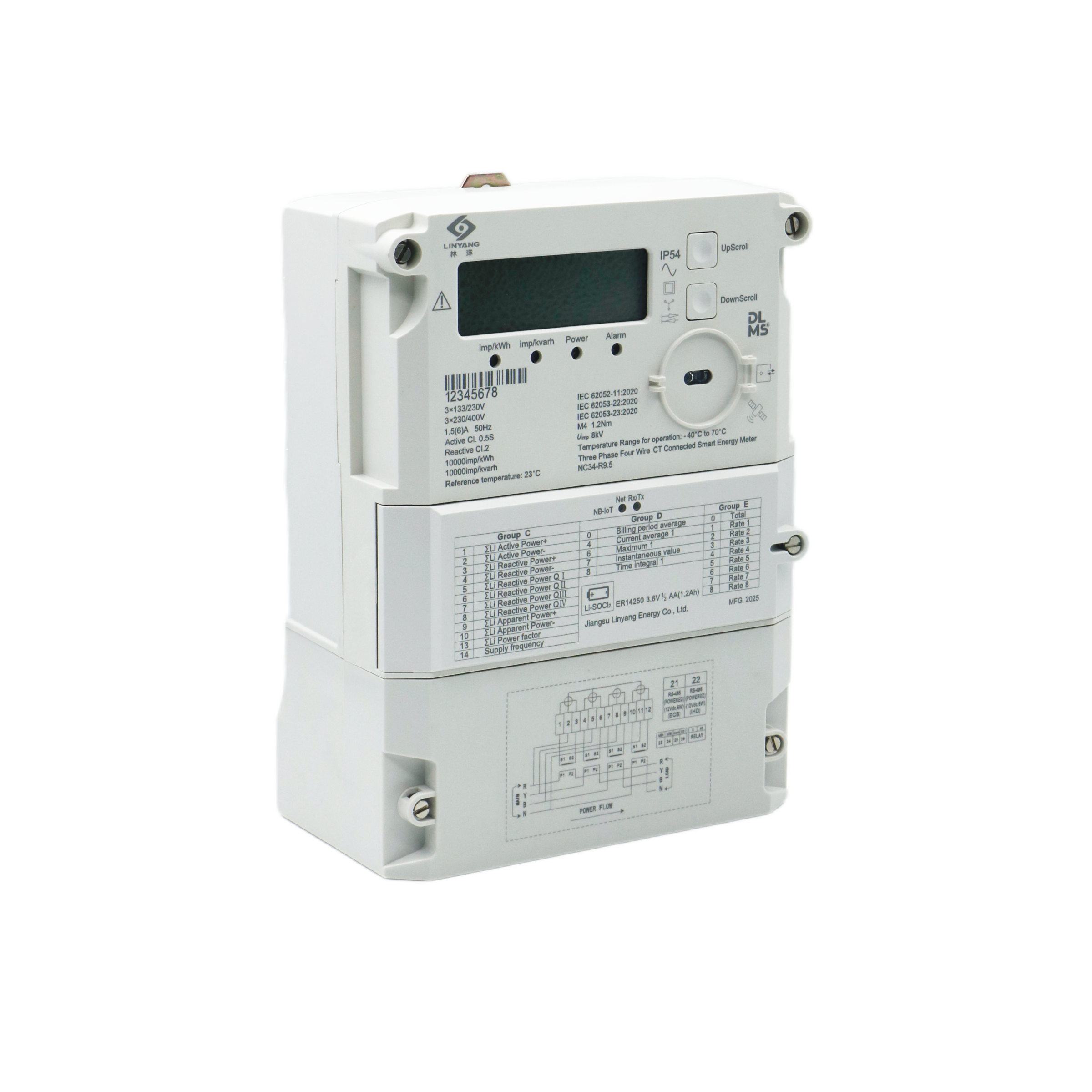

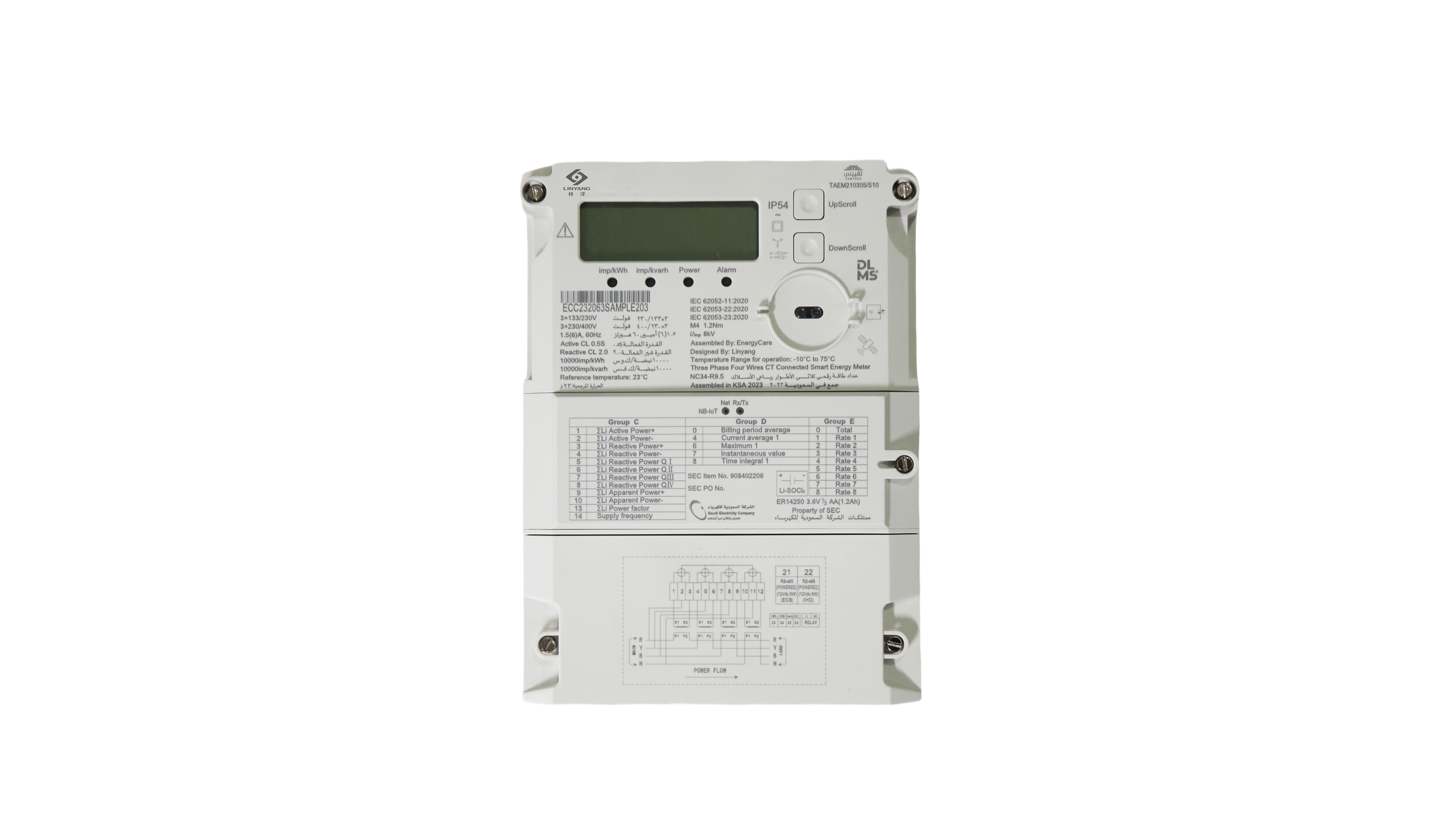

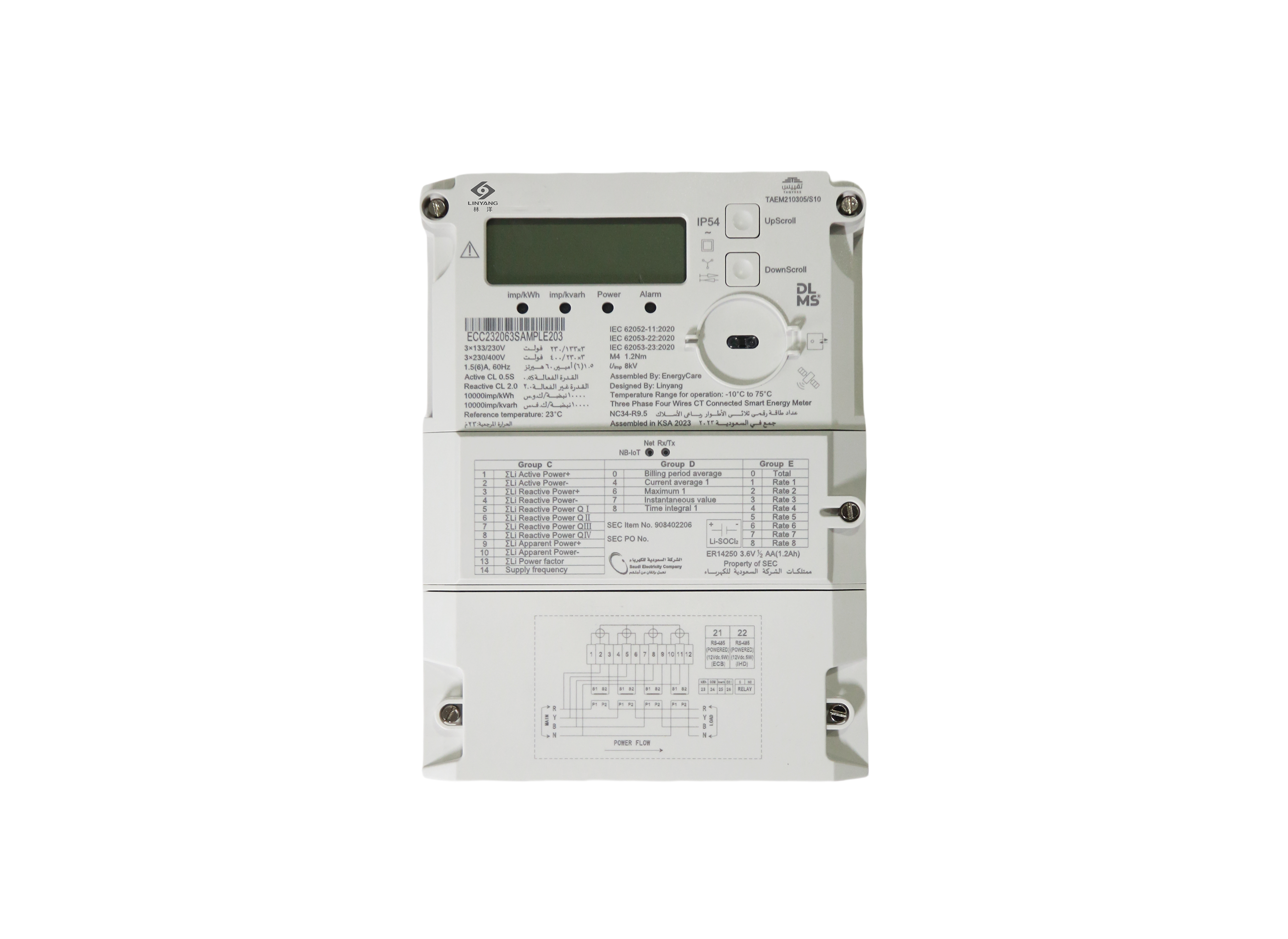

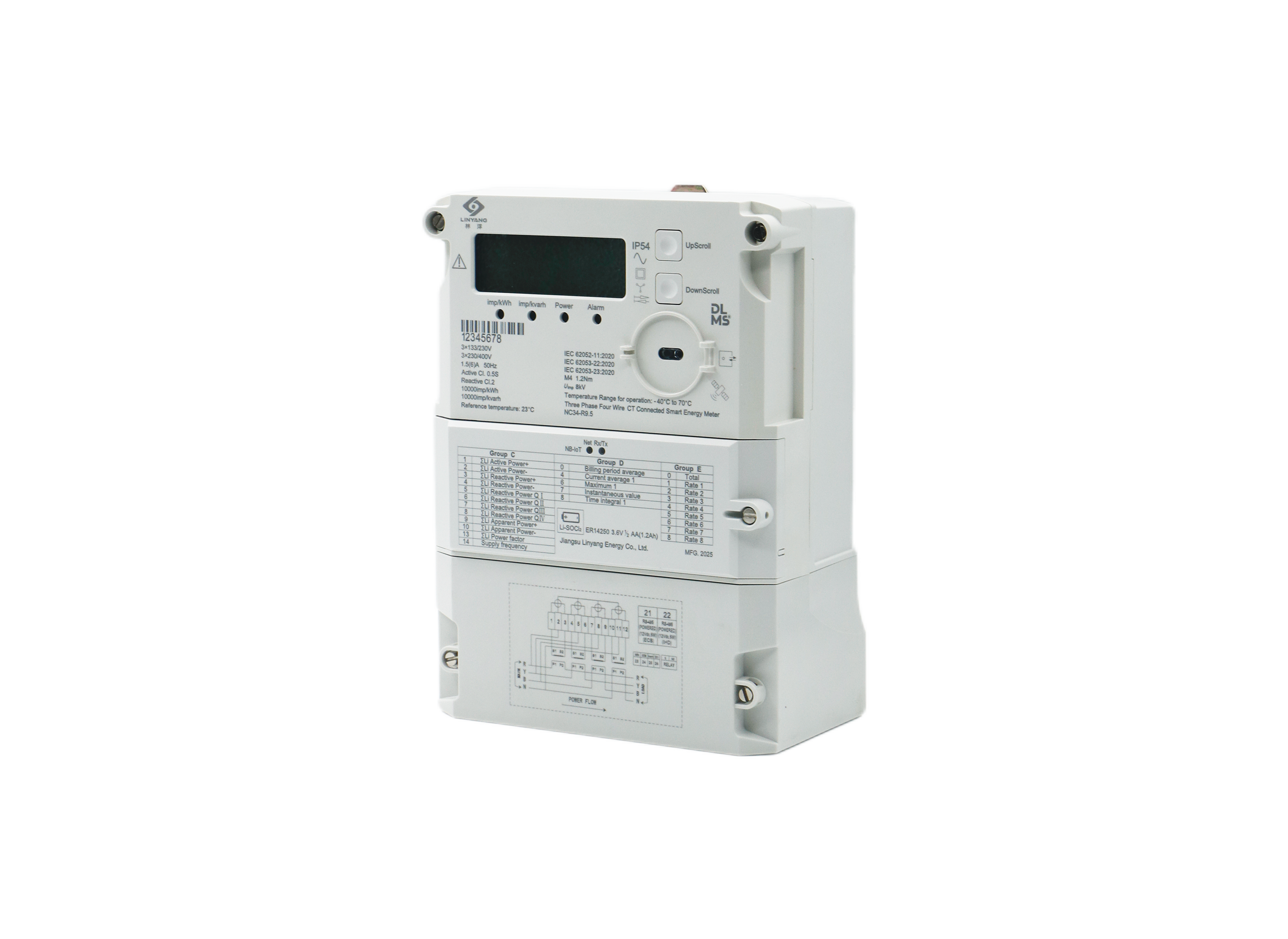

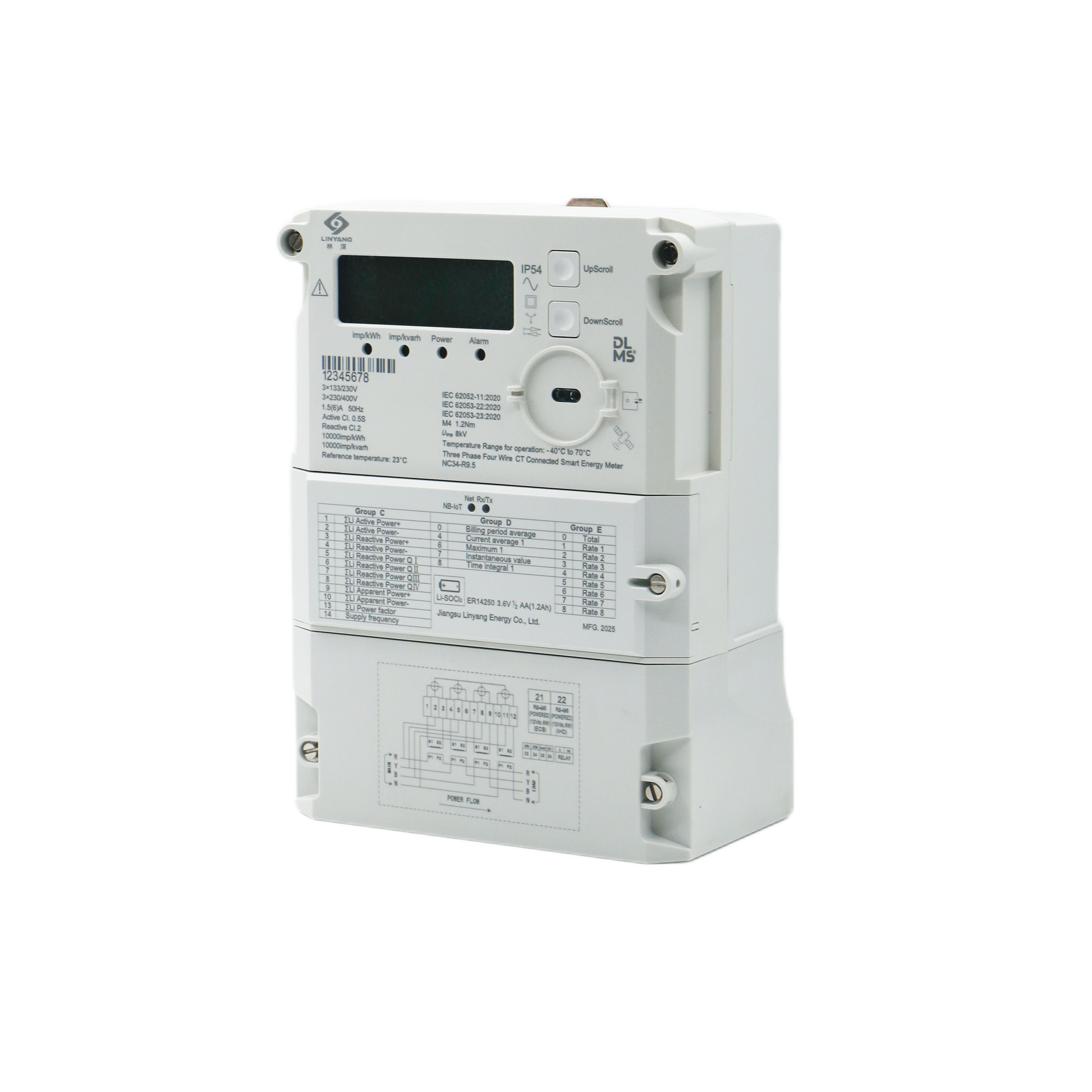

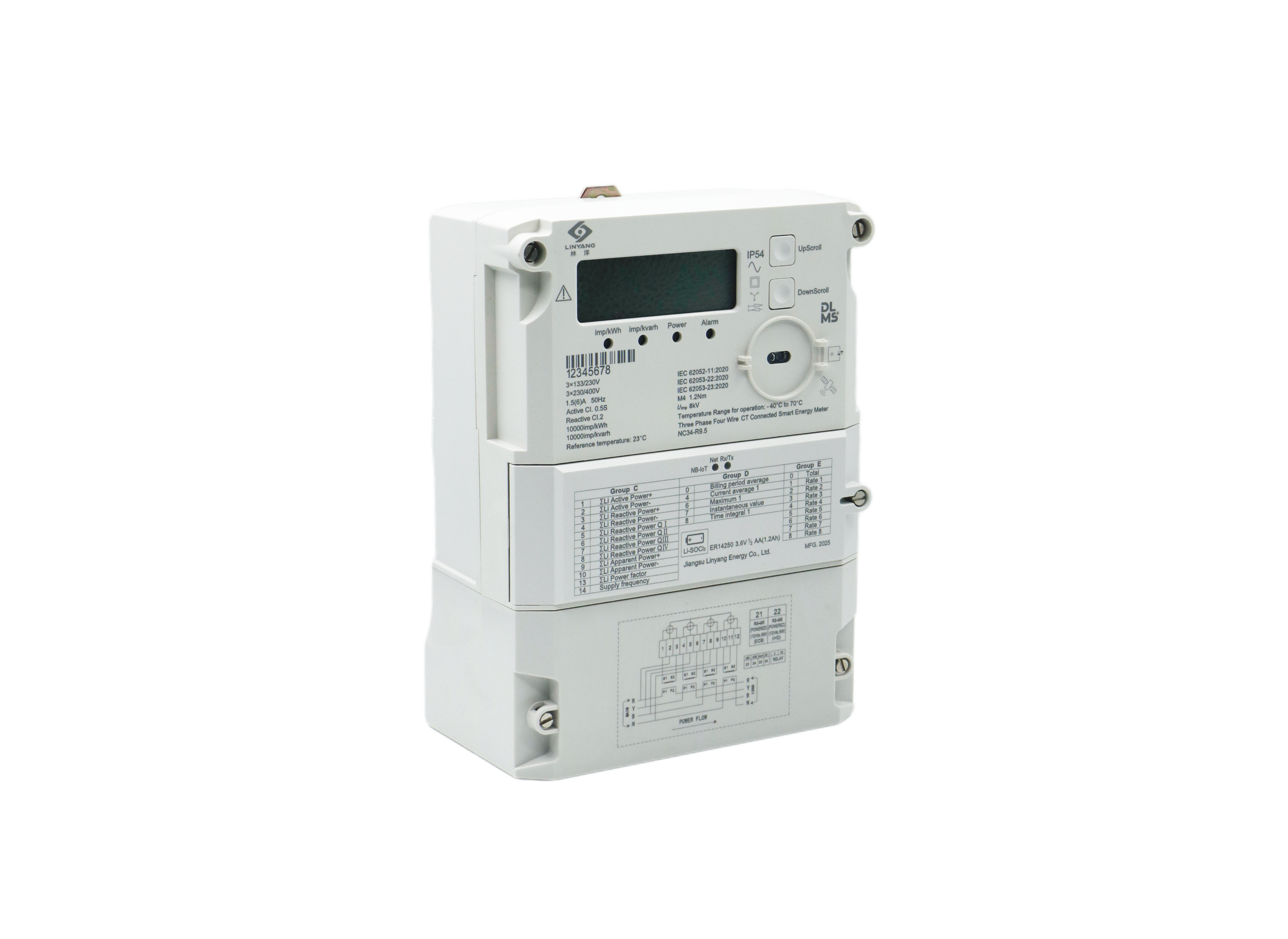

Next Generation Fully Programmable Smart Energy Meter NC34-R9.5 (CT)
NC34-R9.5 is a next-generation CT-connected three-phase smart meter with high performance, reliability, and a wide measurement range for C&I users. It complies with the latest IEC and DLMS/COSEM standards. It supports local and remote energy measurement via PLC/RF/NB-IoT. Local RJ-45 ports with MODBUS handle load demand limitation, while the built-in GPS modem tracks meter locations remotely via NMS systems.
Download Product Manual
Main Features
-
Multi-Energy Measurement
-
Bi-directional measurement of import/export active, reactive and apparent energy including demand registers
-
Import/Export Energy as well as Absolute value of active energy measurement
-
Cumulative energy of each TOU channel
-
Four Quadrant Reactive energy
-
-
Supply Quality Monitoring
-
Instantaneous voltage, current, power factor, phase angle, Temperature and frequency monitoring
-
Import/Export Average PF (Total and ToU)
-
Voltage and current quality data monitoring (Under voltage, Over current, SAG/Swell)
-
Instantaneous Harmonics (THD) measurement
-
Maximum quality registers (Maximum Voltage, Maximum current and MaximumTemperature)
-
Battery voltage
-
-
Field replaceable Battery
-
Battery can be replaced on site without breaking the calibration seals
-
Battery level indicators (low/failure)
-
-
Communication
-
Bi-directional communication channel to read locally and remotely through optical port, RS-485 and/or modular communication modem of PLC/RF/GPRS/4GLTE/NB-IOT
-
Plug and Play of PLC/RF/GPRS/3G/4GLTE/NB-IOT communication module without powering off and/or disconnecting the meter from the grid through serial interface
-
RS-485 Port using RJ-45 connector shall be used to control ECB over MODBUS
-
-
Fraud Detection
-
Detection and recording of Top cover open, terminal cover open, Magnetic field interference.
-
CT Open and CT by-pass detection and recording
-
Neutral line missing, Phase sequence reversal, Phase-neutral swap.
-
-
Load Profile
-
Load Profile with more than 16 channels captured in a defined LP interval (Configurable).
-
90 days of Profile can be stored in the memory
-
-
Time of Use
-
8 tariffs for active/reactive energy and Max Demand & record them for normal days and holidays separately
-
10-time divisions for each day
-
8-day profiles
-
8-week profiles
-
8 seasonal profiles
-
420 special days
-
2 sets of TOU profiles (active and passive)
-
Immediate and Scheduled tariff plan activation
-
-
Events and Alarm
-
More than 45 categories of events for easy access (remotely and locally)
-
Immediate Alarm Reporting to Control Centre (upon occurrence & Restoration)
-
Configurable Alarm filters to push Critical alarms
-
Detailed event log capture with the time of Event Occurrence/Restoration and the Number of times of Occurrence/Restoration
-
